Tattu 5.0 34000mAh 18S1P 68.4V HV 30C

重载与 100KG 级载荷无人机的终极动力方案。

Tattu 5.0 34000mAh 18S1P 68.4V HV 30C Smart UAV LiPo Battery with ACES Plug

As industrial drones enter a new era of 100L agricultural spraying and 100KG cargo transport, power system stability has surpassed pure capacity as the ultimate driver of operational efficiency and safety. The Tattu 5.0 18S Smart Battery Series is built upon an all-new high-power platform, featuring a complete system-level overhaul—from cell chemistry and thermal architecture to intelligent BMS integration and rapid-charging capabilities. Designed to deliver lower operating temperatures, unwavering power output, and superior reliability under continuous high-load, high-frequency conditions.

2325.6Wh
Energy Capacity
408A
持续放电电流
6C
快充倍率
1000+
循环寿命

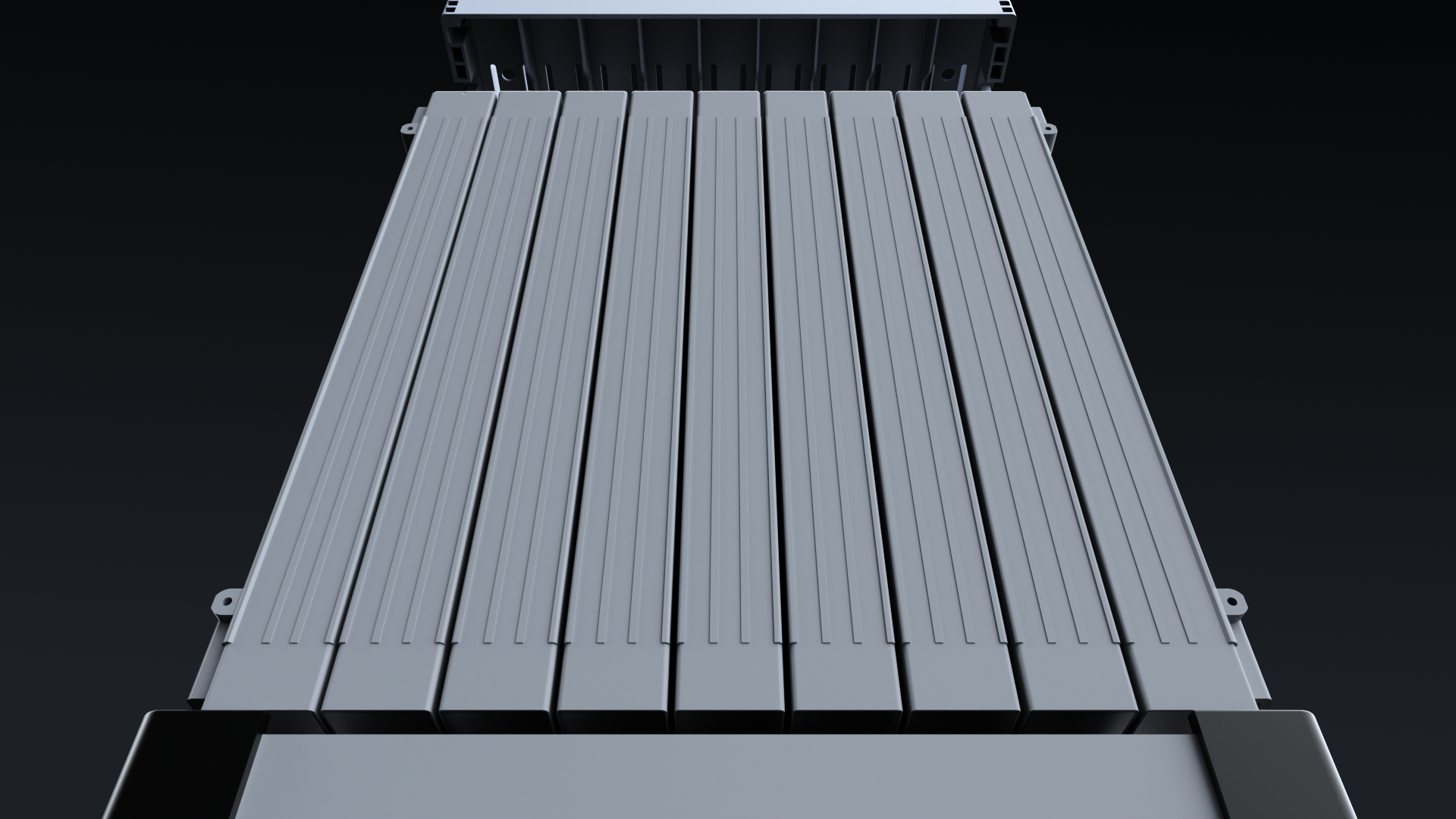

双极耳电芯设计，发热更低、输出更强

Dual‑tab 电芯设计 shortens current paths and lowers resistance, enabling cooler operation, balanced heat distribution, and 更强 high-rate 性能.

2325.6Wh High Energy with 500A Continuous Discharge
Engineered for 100KG payloads, maintaining a rock-solid voltage platform and thermal balance during high-intensity, continuous flight maneuvers.
Rapid 6C Charging with Intelligent Automation
Ultrafast 6C charging delivers up to 220A for a near full recharge in 14 minutes, with intelligent automation ensuring safe, efficient operation.

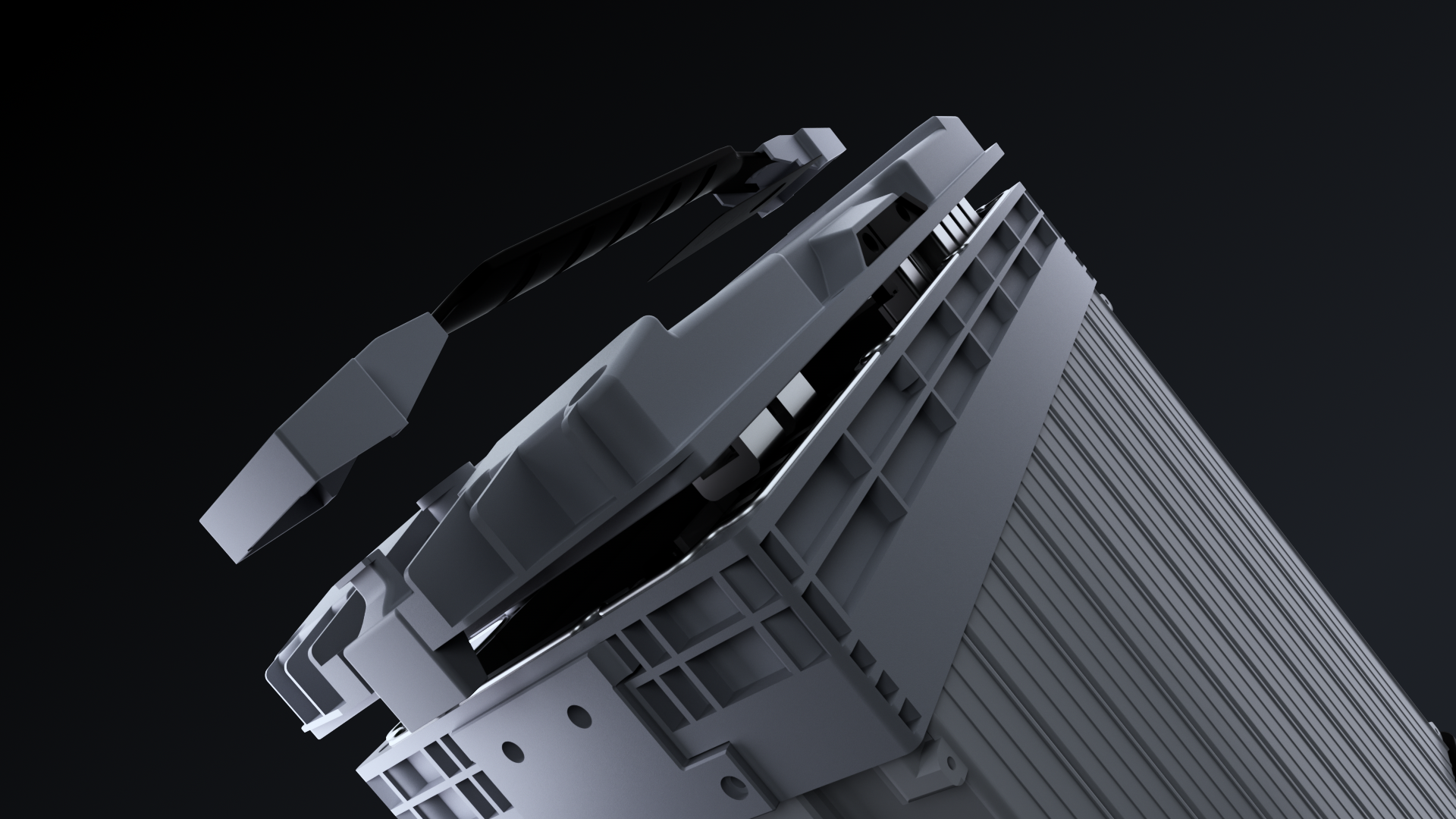

航空级材料的先进热管理

The hollow grille design improves cooling and reduces downtime, while the aluminum-magnesium alloy housing cuts weight by ~30% and maintains high structural strength.

Extended Cycle Life Beyond 1000+ Uses

esigned for durability, the Tattu 5.0 provides long-lasting energy support for agricultural and industrial UAVs, reducing cost per mission and maximizing fleet ROI.

Operating Cycle Capacity
Retention Curve

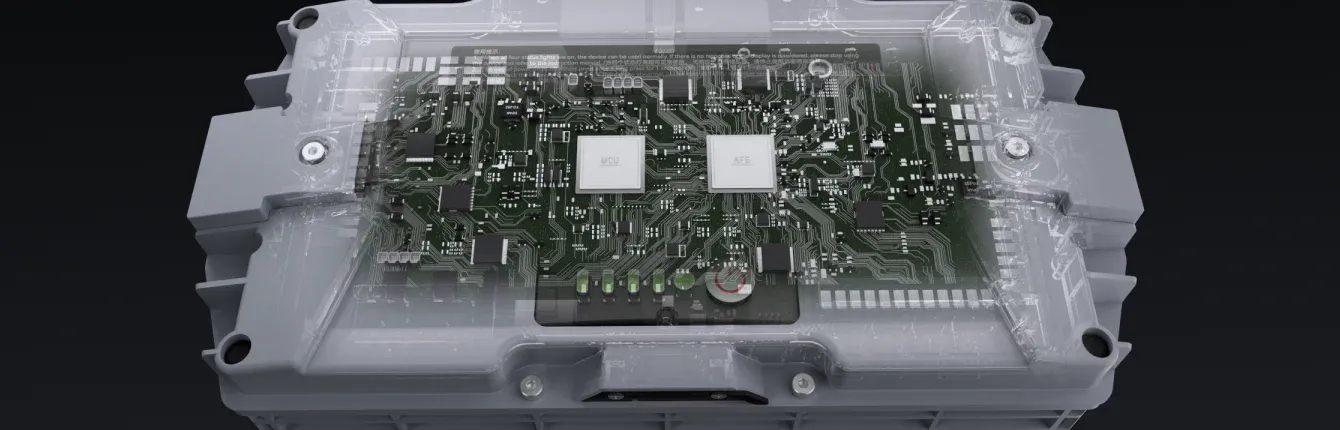

Advanced Smart BMS for Safer, More Reliable Power

The Tattu 5.0 BMS combines precise state-of-charge monitoring, active cell management, and redundant safety architecture — fully integrated with leading drone flight controllers via DroneCAN.

Proprietary SOC Algorithm
±3% SOC accuracy with intelligent low-voltage warnings and automatic storage mode.
Automatic Cell Balancing
Enhanced passive balancing current accelerates cell equalization for consistent performance across all cycles.
Dual short-circuit protectio
Dual MOSFET and fuse protection provides fail-safe operation even in single-point failure scenarios.
DroneCAN Protocol
Works seamlessly with ArduPilot, PX4, VK, Brouav, and Jiyi via CAN bus.

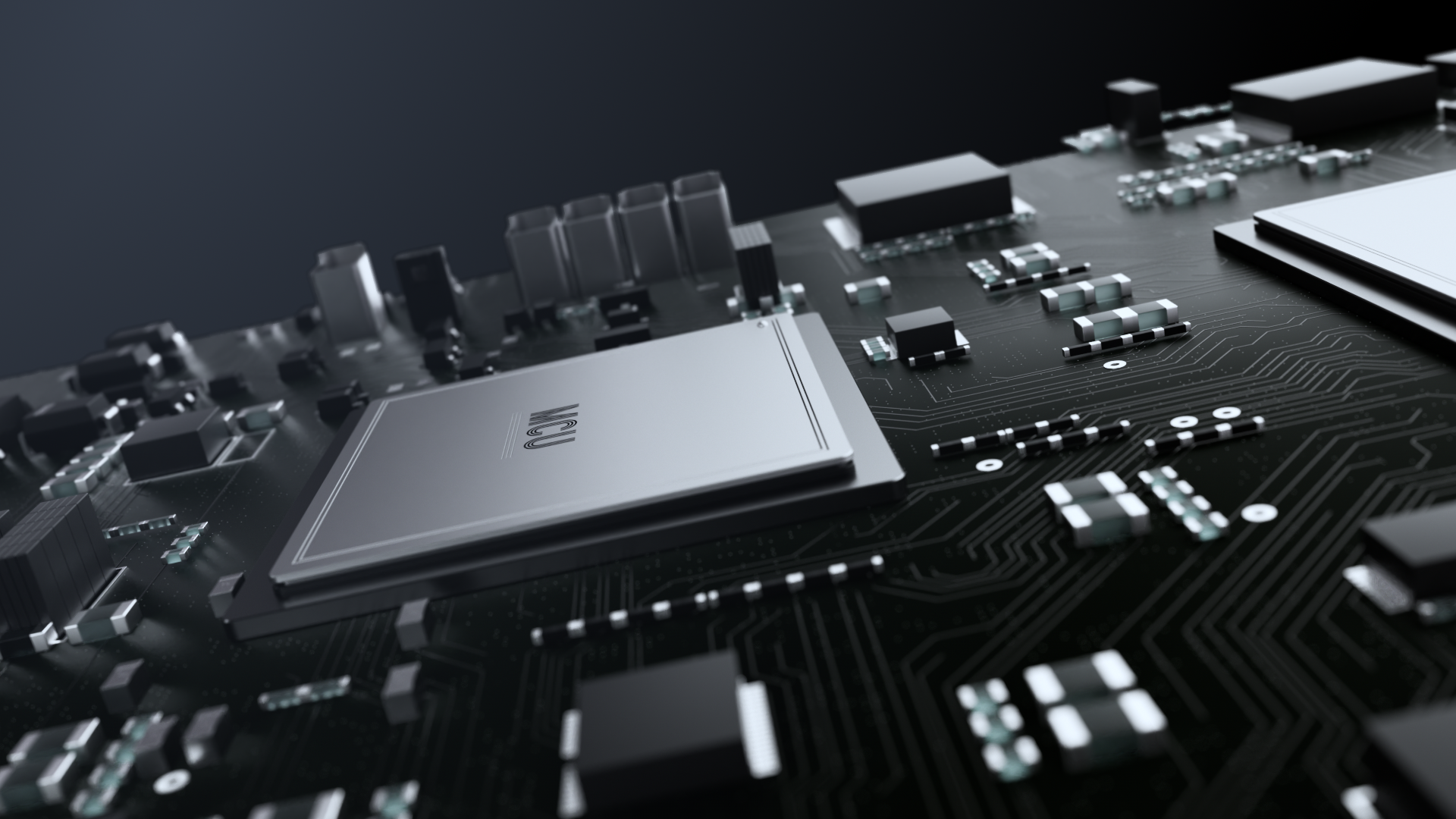

Intelligent Power Architecture for Precision

Industrial-Grade MCU

Advanced AFE Chip

Smart Parallel Capability

Low-power MCU reduces static consumption fivefold, enabling up to 2 years of semi-storage without risk of deep discharge.

High-accuracy AFE chip ensures ±3mV voltage precision and reliable data even at -20°C.

Smart parallel operation allows flexible system setups, supporting higher power needs and multi‑battery deployments.

Built Tough. Built Smart.

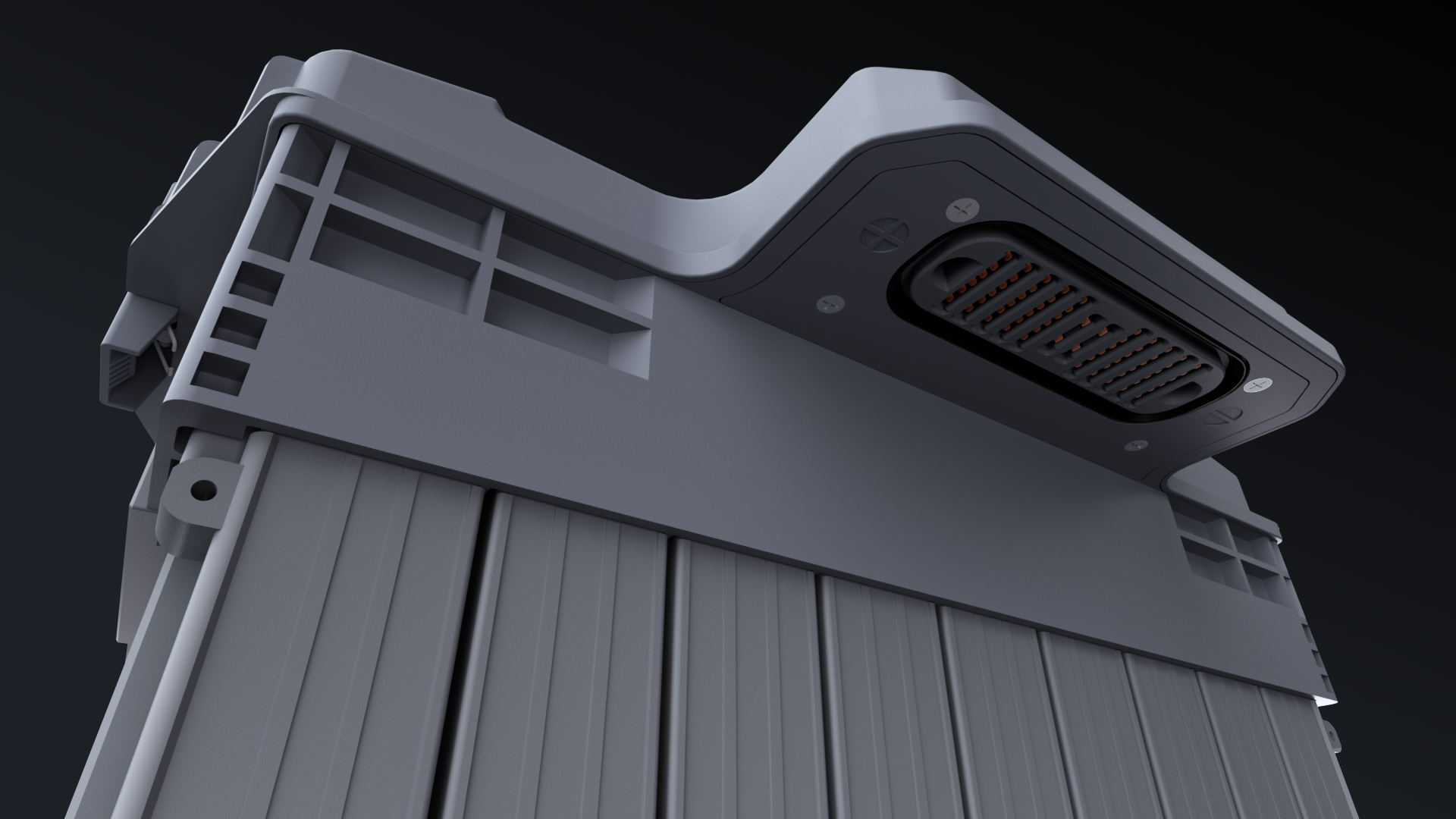

500A Connector

Gold-plated high-power interface reduces resistance for massive power bursts.

IP65 Rating

Full potting process provides industrial-grade waterproof, dustproof, and shockproof protection.

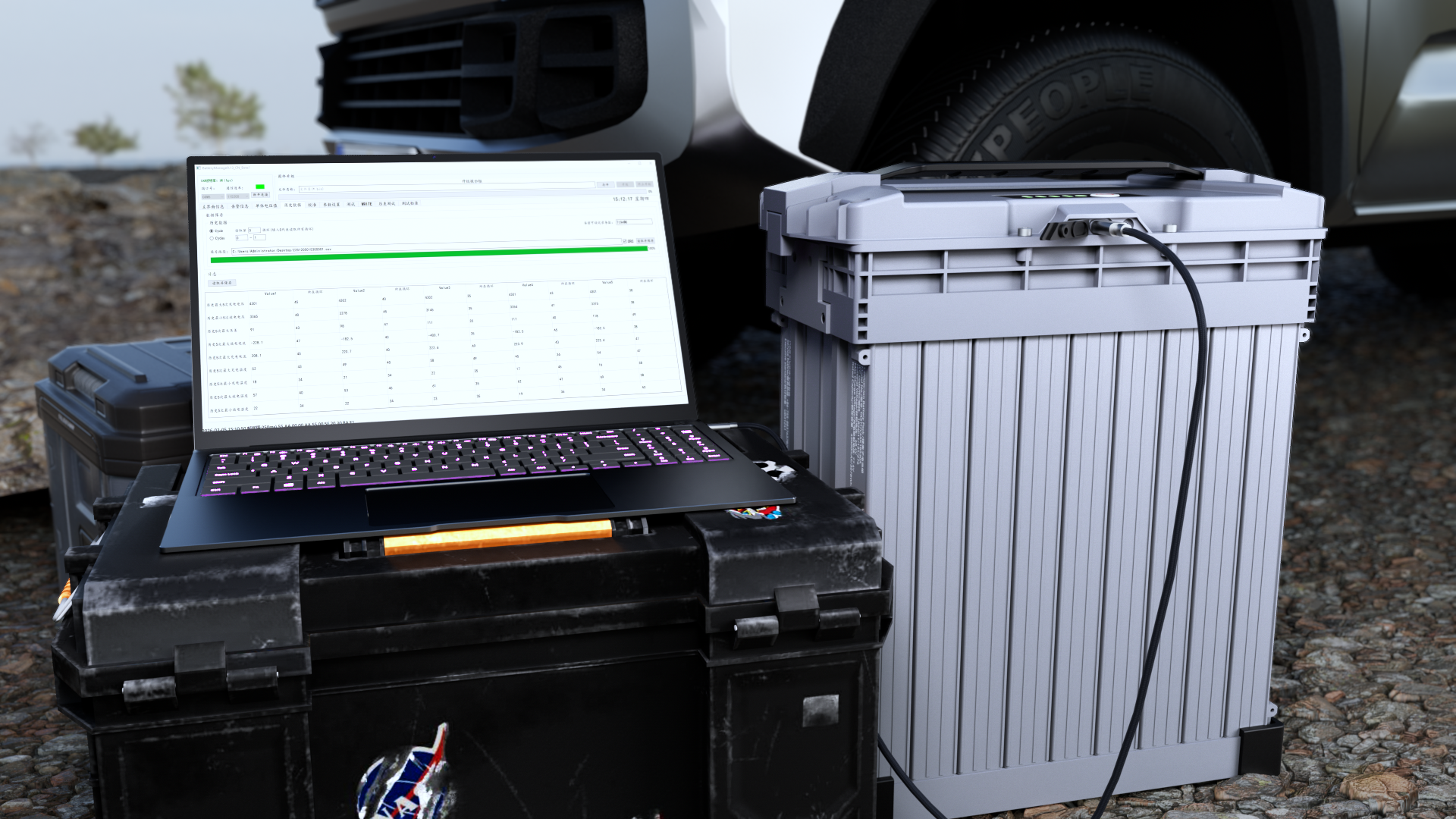

Fast Data Export

Waterproof Type-C port exports 250,000 logs in 8 minutes (11x faster).

Ergonomic Design

Integrated handle and self-locking snap mechanism for rapid field swaps.

常见问题

售后服务

下载中心

定制服务

APP

展会

FPV 电池选型

新闻

案例研究

博客

白皮书

关于 Tattu

技术

Tattu FPV 传奇车手

Tattu 5.0 34000mAh 18S1P 68.4V HV 30C

Tattu 5.0 34000mAh 18S1P 68.4V HV 30C

Tattu 5.0 34000mAh 18S1P 68.4V HV 30C Smart UAV LiPo Battery with ACES Plug

2325.6Wh

408A

6C

1000+

双极耳电芯设计，发热更低、输出更强

Dual‑tab 电芯 设计 shortens current paths and lowers resistance, enabling cooler operation, balanced heat distribution, and 更强 high-rate 性能.

2325.6Wh High Energy with 500A Continuous Discharge

Rapid 6C Charging with Intelligent Automation

航空级材料的先进热管理

Extended Cycle Life Beyond 1000+ Uses

esigned for durability, the Tattu 5.0 provides long-lasting energy support for agricultural and industrial UAVs, reducing cost per mission and maximizing fleet ROI.

Advanced Smart BMS for Safer, More Reliable Power

The Tattu 5.0 BMS combines precise state-of-charge monitoring, active cell management, and redundant safety architecture — fully integrated with leading drone flight controllers via DroneCAN.

Proprietary SOC Algorithm

Automatic Cell Balancing

Dual short-circuit protectio

DroneCAN Protocol

Intelligent Power Architecture for Precision

Built Tough. Built Smart.

500A Connector

IP65 Rating

Fast Data Export

Ergonomic Design

灵活充电生态系统，适配每一次作业

规格参数

Product Sku

TA5THV34K18S30A

标称容量

34000mAh(@0.2C)

Energy

2325.6Wh

Nominal Voltage

68.4V 18S1P

Charge cut-off voltage

77.4V

Discharge cut-off voltage

Cell 3.0V@0.2CCell 3.35V@≥0.5C

Max Continuous Discharge Current

408A

Max Pulse Discharge Current

510A (≤ 3S)

Typical Charge Current

6.8A (0.2C)

Maximum Charge Current

204A (6C)

Dimension(LxWxT)

347x273.5x117.5mm

Weight

15.2Kg

Connector

ACES

Charge Temperature

5~75℃

Discharge Temperature

0~60℃

Storage Temperature

-20~35℃(<3months)

Internal Resistance

≤15mΩ

Cycle Life

>1000 Cycles

Packaging

Hard Case

Dual‑tab 电芯设计 shortens current paths and lowers resistance, enabling cooler operation, balanced heat distribution, and 更强 high-rate 性能.

灵活充电生态系统，
适配每一次作业

Cell 3.0V@0.2C
Cell 3.35V@≥0.5C
